A UOC project brings digitalization to the aquaculture sector without the need for complex technical expertise
The researchers are developing a solution to measure production and quality parameters that can be analysed over timeADO is a complete platform for aquaculture SMEs that cannot afford industrial solutions

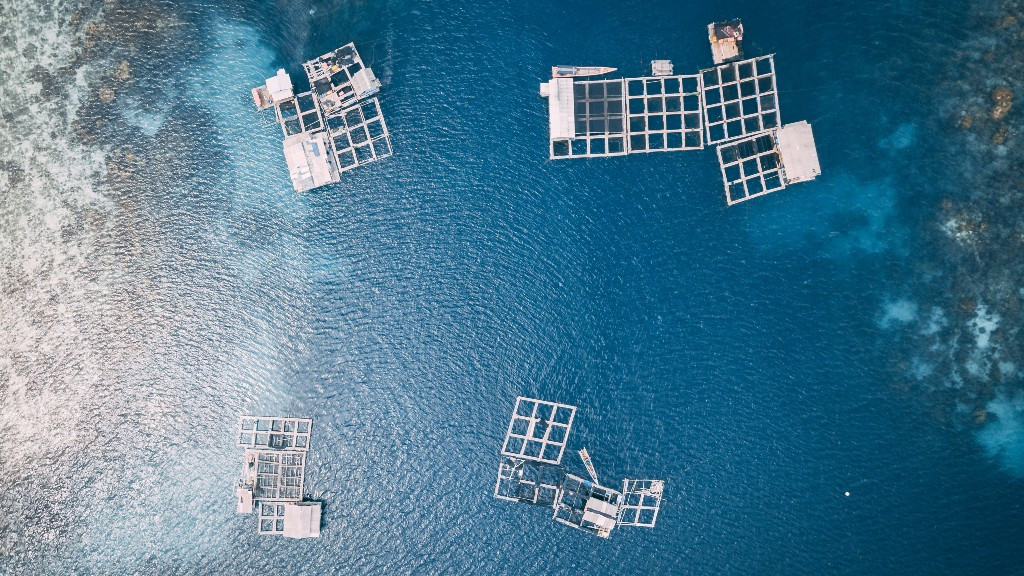

![UOC researchers have designed low-cost sensors for aquaculture (photo: Hanson Lu / unsplash.com)](/content/dam/news/images/noticies/2022/122-aquicultura-tecnologia.jpg)
Aquaculture is one of the solutions for feeding an ever-growing population. Technological solutions are increasingly needed to optimize resources. This is exemplified by research work such as the ADO (Open Digital Aquaculture) project, led by the Wireless Networks (WiNE) group of the Internet Interdisciplinary Institute (IN3) of the Universitat Oberta de Catalunya (UOC), which has developed a platform applying the Internet of Things (IoT) to the cultivation of aquatic animal and plant species.
Hardware and software designed for aquaculture
UOC researchers launched the ADO project in 2019 to install low-cost electronic sensors to monitor pH levels, temperature, turbidity and oxygen levels in a number of farms in Catalonia (in Baix Montseny, Pla de Lleida and Terres de l'Ebre). As part of the ADO project, researchers Ioana Cristina Suciu, Guillem Boquet and Pere Tuset, together with the WiNE group leader, Professor Xavier Vilajosana, professors with the Faculty of Computer Science, Multimedia and Telecommunication, have published an open access scientific article on the development, use and implementation of the platform.
"ADO is a complete platform created to take into account the needs of small and medium-sized aquaculture enterprises that cannot afford the cost of industrial solutions," explained Suciu. "It includes hardware, software and a user interface – the three key components of a digital system – and is designed to collect data from various sensors and display them in real time." This data is displayed in various formats, numerical and graphical, with the option to activate alerts using certain parameters. This allows SMEs in the sector to monitor their facilities economically and effectively.
"The project uses the same general architecture as most of the available monitoring systems: sensor nodes, a server or local data storage solution and a web page or application to visualize the data," she said. The difference lies in the communication protocol, the design of the user interface, the number of sensors, and the final cost. She also noted, however, that "we are taking this project a stage further: our solution is designed to allow secure connections, integrated panels, the option to download data and the control and calibration of the sensors in real time. We also supplied a complete configuration guide, with details on the final price and technical specifications."
ADO supplies a complete kit to allow aquaculture managers to digitalize their operations without technical expertise. "The resulting system meets the needs identified by the European Maritime and Fisheries Fund. Digitalization means we can generate success through learning," said Ioana Cristina Suciu. "The manager of the operation has access to the information from the sensors over time and can keep it for as long as needed, allowing specific water quality parameters to be correlated against production in terms of health, quantity and other key parameters for the business. This learning can be broadened to minimize losses, through the early detection of disease or problems involving the aquaculture infrastructure," clarified the researcher.
Making technology available to everyone
In a facility that is connected to the IoT, the data are accessed via an online digital platform, allowing managers to work with them more effectively and remotely. Ioana Cristina Suciu pointed out that it also enables the analysis of variables so the aquaculture manager can prevent a range of issues and emergencies. And the system's features can go even further than that, making it possible to eliminate human intervention in routine activities.
According to Suciu, the potential of IoT in aquaculture includes "devices that collect data from sensors, send information in real time to the user and can be used to activate water change, oxygen addition, food dispense or adjust the temperature or ventilation". The ultimate aim of the ADO system is to use technology to allow the facility to operate semi-autonomously. There are two key aspects to achieving this. The first of these is the open licence that gives the project its name.
"The open-source licence means anyone interested in the project will be able to replicate it, giving them access to the hardware and the code free of charge," explained Suciu. "The aim of the project was to help SMEs in the aquaculture sector to digitalize, and the open-source licence makes this possible." For example, "a data collection system for a turbidity sensor could cost around 4,500 euros, compared with an open-source solution with sensors costing under 600 euros".
The system has also been designed based on plug and play hardware, "to make the device easier to use by people who lack technical expertise. The user of an ADO device just has to press the on switch and set up a user account. This simplicity of use means a digital solution can be implemented more quickly in a sector that has remained more traditional than other agrifood industries," she explained.
Modern and accessible aquaculture farms
One of the competitive advantages of the technology developed by the UOC research team is its accessible cost. According to the researcher, "a fully equipped device, including 10 sensors, costs around 600 euros. Each device can contain a configurable number of sensors, so the cost can vary from 200 euros, for a device with no sensors, up to 600 euros."
The ADO system is currently installed at a site near the Ebro delta managed by the Catalan Institute for Professional Aquaculture and Environmental Studies (IEPAAC). As Suciu noted, "Its take-up will depend on each aquaculture farm's finances and the interest this project generates."
This research by the UOC supports Sustainable Development Goal (SDG) 8: Promote sustained, inclusive and sustainable economic growth, full and productive employment and decent work for all.
Related article
Suciu, Ioana, Guillem Boquet, Pere Tuset-Peiró, and Xavier Vilajosana. 2022. "ADO: An Open Digital End-to-End Tank Based Aquaculture Multiplatform". HardwareX 11 (April). https://doi.org/10.1016/j.ohx.2022.e00283.
The UOC's ODA project was funded by the European Maritime and Fisheries Fund, created to foster knowledge transfer between researchers and fishing professionals and innovation in the aquaculture industry for the years 2019, 2020 and 2021. It is managed by the Government of Catalonia's Ministry of Agriculture, Livestock, Fisheries and Food.
